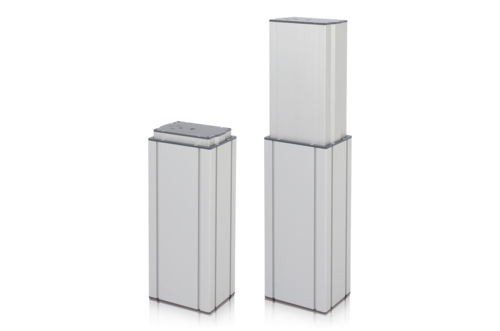

Lifting Column MC 14, 2000N. S 500 mm

Article number: 10-014-003

Become a retailer

Product information - Lifting Column MC 14, 2000N. S 500 mm

Electrical lifting column for industrial environments. Stable, silent, and designed to regulate working positions in tables, fixtures, or workstations. MC 14 is our most popular lifting column as it has a very wide range of possible areas of use. A heavy duty (HD) pillar available in several different executions with a lifting force up to 10 000N. The lifting column has a stroke length of 100-600 mm and a lifting speed of maximum 39 mm/sec. Bending moment dynamic 800 Nm, static 1000 Nm (depending on stroke length). Installation dimensions from 222 mm.

It is possible to introduce cable outlets in the large or small pillar, as well as add a thicker mounting plate in both profiles (8 mm). Motor cable 140 cm mounted (other lenghts are available as an option).

Outer profile: 194x148 mm
Inner profile: 182x126 mm

This variant of lifting column has a stroke length of 500 mm, an installation dimension of 645 mm, and a lifting force of 2000N. Lifting speed 15 mm/sec at 2000N.

Feel free to contact us for specific requirements!
